- Case Study -
AUCTION PADDLE

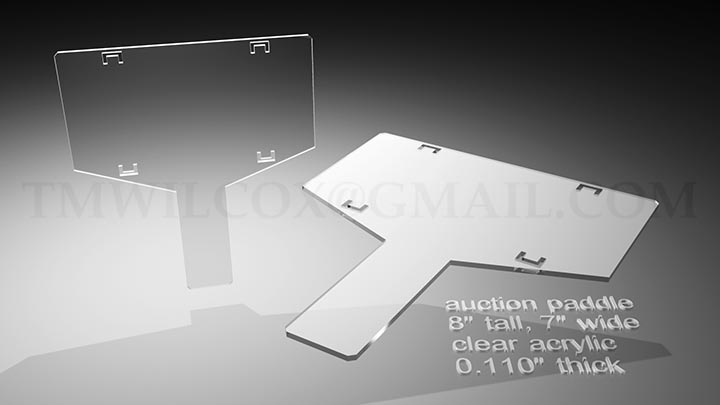

Even simple products offer challenging design problems. A university fundraising coordinator wanted one hundred serialized auction paddles cut and engraved overnight. Substituting acrylic for plywood, my solution adds embedded tabs for attaching inkjet printed cards with elastic bands, and a perimeter shape for dense sheet nesting. Needing a tool path for a CNC laser cutter, I drew a 2D vector graphic, then reused it in this 3D ray traced simulation of clear Plexiglass paddles with polished edges.
3D SCANNER
CGI STILL LIFE
THIS IS NOT A BRICK
BIOMIMETIC DEVICE
OPERATION ICE HOUSE
VIRTUAL RESORT
BOOK COVER
VIRTUAL REALITY CONTROLS
BOARD GAME

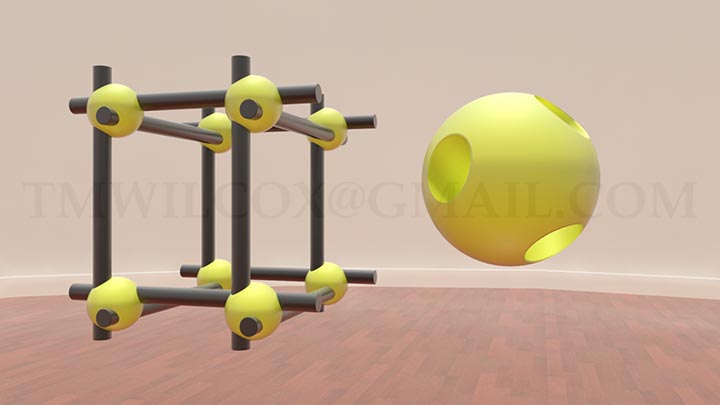

FRAME CONNECTOR
